Monitoring a server

Monitor CPU usage, storage space, and other details for the BLAZE server.

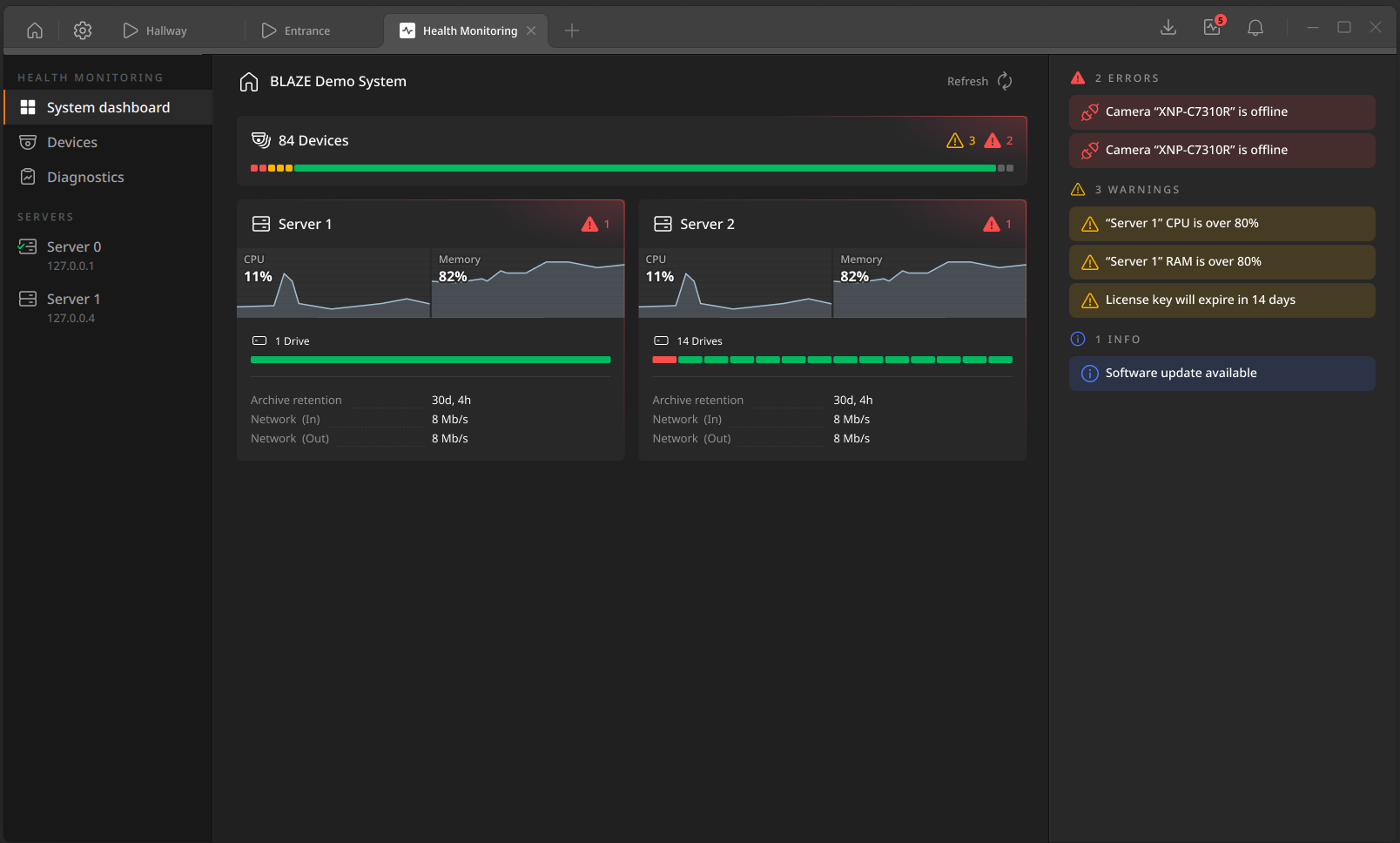

To view server monitoring information

  1. On the Home page, click Health monitoring.
  2. Select a server from the server list on the left.
    • Status icon appears at the top of each card.

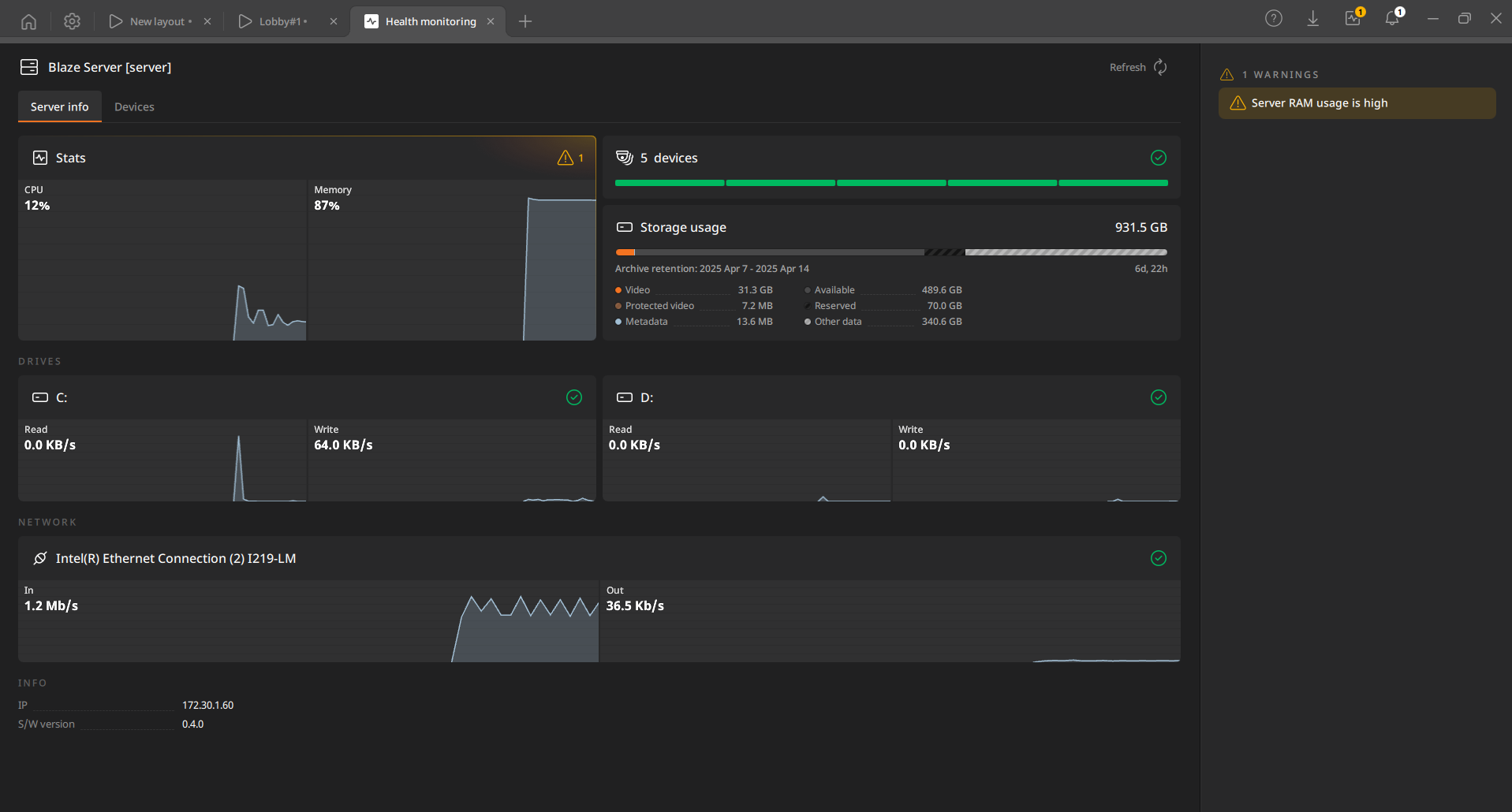

Server information

View detailed information for the BLAZE server. Click Refresh at the top to update the data.
  • Stats: CPU and memory usage of the server.
  • Devices: The number of devices connected to the server and their status (normal, warning, or error).
  • Storage usage: A chart showing storage utilization on the server, including recorded videos, protected videos, metadata, and more.
    • Also shows the archive retention period (days/hours of recordings available for playback) across all devices in the system.
  • Drives: Read/write speeds for each drive on the PC where the server is installed.
  • Network: Network traffic for the system.
    • In: Total incoming traffic from camera video and metadata. Out: Total video traffic sent from the server to the client.
  • Info: The IP address and software version of the server.
  • System status: Real-time monitoring results for server and device issues.

To view devices per server

View the device list for a specific server rather than the entire system.

  1. Select the desired server from the list on the left.
  2. On the Server dashboard, click the Devices tab.

To view devices across all servers, click the Devices tab in the left menu.
